AC3011

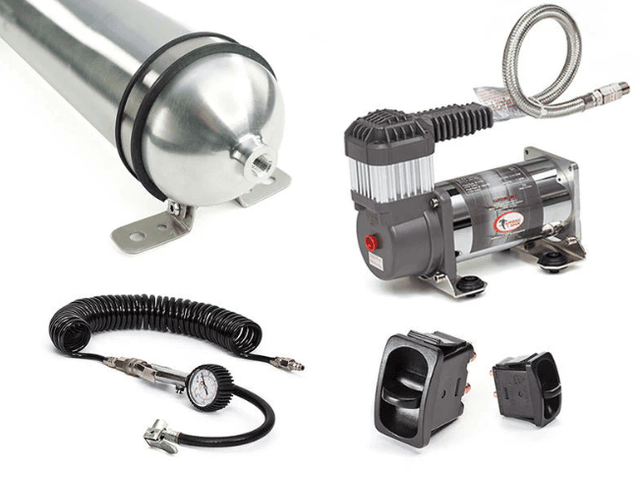

Dual Paddle Air Control Kit with Tyre Inflation using 4L Air Tank and Heavy Duty Compressor (no gauge)

Complete dual paddle air control kit designed for air suspension air bags and tyre inflation. Features the AC8110 heavy duty 200 PSI air compressor, 4L aluminium air tank, in-cabin dual paddle inflate and deflate control, and tyre inflation wand.

Key Features

• Dual paddle in-cabin control for independent inflate and deflate
• AC8110 heavy duty air compressor
• 4L seamless lightweight aluminium air tank
• Tyre inflation wand with integrated inflator gauge
• Dual switch mounting bracket included
• Pressure gauge not included

AC8110 Compressor Specifications

• Working Pressure: 200 PSI
• Duty Cycle: 50 percent
• Air Flow: 76 LPM / 2.70 CFM at 0 PSI
• Maximum Amp Draw: 35 Amps
• Compressor Size: 220 mm L x 115 mm W x 175 mm H
• Space Required: 336 mm L x 127 mm W x 222 mm H
• Mounting area must be open at one end for ventilation

4L Aluminium Air Tank Specifications

• Capacity: 1 Gallon / 4 Litres
• Seamless lightweight aluminium construction
• SAE J10 approved
• Corrosion resistant
• Max Working Pressure: 200 PSI
• Pressure tested to 1000 PSI
• 3 x 1/4 inch NPT ports including drain port
• Multi-position low profile mounting bracket set included
• Tank Size: 605 mm L x 100 mm D x 126 mm H (with mounting legs attached)

Switch and Inflation Details

• Required switch cut-out size: 22.5 mm W x 40.6 mm H
• Tyre inflation hose length: 7.5 m / 25 ft maximum

Ideal for air suspension load support, vehicle leveling, and reliable onboard air for tyre inflation in 4x4 and towing applications.
